Prismatic Diffuser


PRISMATIC SHEET
Prismatic sheet is manufactured from Acrylic resin. The Prismatic Sheet product is used extensively as a diffuser in lighting applications. In most cases this product is used as a diffuser for fluorescent lighting.


Under normal interior conditions these prismatic lenses will perform satisfactorily for 20 years.
The material has a "pyramid design" on one face and comes in
THREE patterns:
Pattern 1 K12
Pattern 2 K15
Pattern 3 K19

FLAMABILITY Rating
UL94 HB

---------------------------------------------------------------------------------------------------

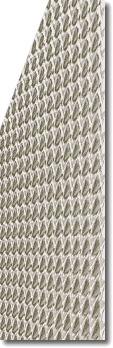

Pattern 1

K12" PRISMATIC PANEL

K12 Information Sheet

SHEET Thickness 2.5, 2.8, 3 & 4mm Thickness
SHEET SIZE 1270 X 2540mm
Prism Size 5mm X 5mm
Prism Config Female at a 45 Deg. axis
Prism Depth 1.8mm

Performance
Light Output Ratio                                       74%
Typical unified glare rating                        22

APPLICATIONS
General Offices, Clinical Facilities, Retail Areas, Skylights, Schools.

Sheet Size
Code
2.5mm thick K122.5
2.8mm thick K122.8
3mm thick K123
4mm thick K124
---------------------------------------------------------------------------------------------------

Pattern 2

"K15" PRISMATIC PANEL

K15 Information Sheet

SHEET Thickness 3.9, 4.4mm thickness
SHEET SIZE 1270 X 2540mm
Prism Size 4.7mm X 4.7mmPrism Config Male square to sheet
Prism Depth 2mm

Performance
Light Output Ratio                      82%
Typical unified glare rating       18

APPLICATIONS
llluminated Ceilings, Sky Domes, Natural Lighting, General Offices,
Retail Areas, Skylights, Schools.

Sheet Size Code
3.9mm thick K153.9
4.4mm thick K154.4
---------------------------------------------------------------------------------------------------
Pattern 3
"K19" PRISMATIC PANEL

K19 Information Sheet

SHEET Thickness 4mm thickness
SHEET SIZE 1270 X 2540mm
Prism Size 4.7mm X 4.7mm
Prism Config Male square to sheet
Prism Depth 2mm

Performance
Light Output Ratio                                             78%
Typical unified glare rating                              16

APPLICATIONS
Supermarkets, Computer Rooms, Laboratories, Test & Inspection Areas, Radio Frequency Sensitive Areas, General Offices, Skylights, Schools & Colleges.
Sheet Size                  Code

4mmthick                      K194

SHEET SIZE
In all thicknesses the sheet size is 1270 X 2540mm

CUT TO SIZE
We offer a Cut To Size service for all sheet products.
We also can radius the corners and cut to various shapes.

K12^


K15^

K19^

Get a quote for our cut to size service!
